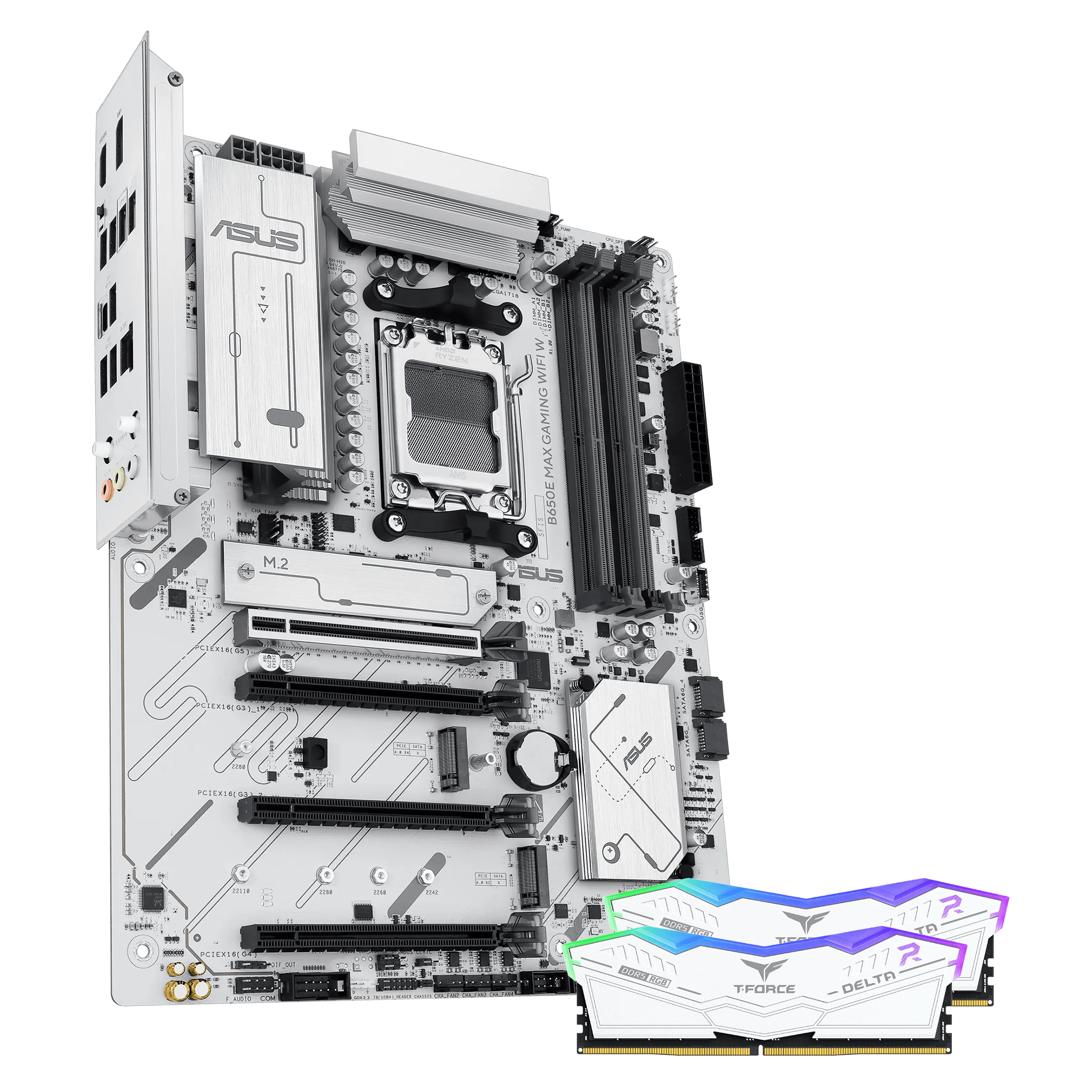

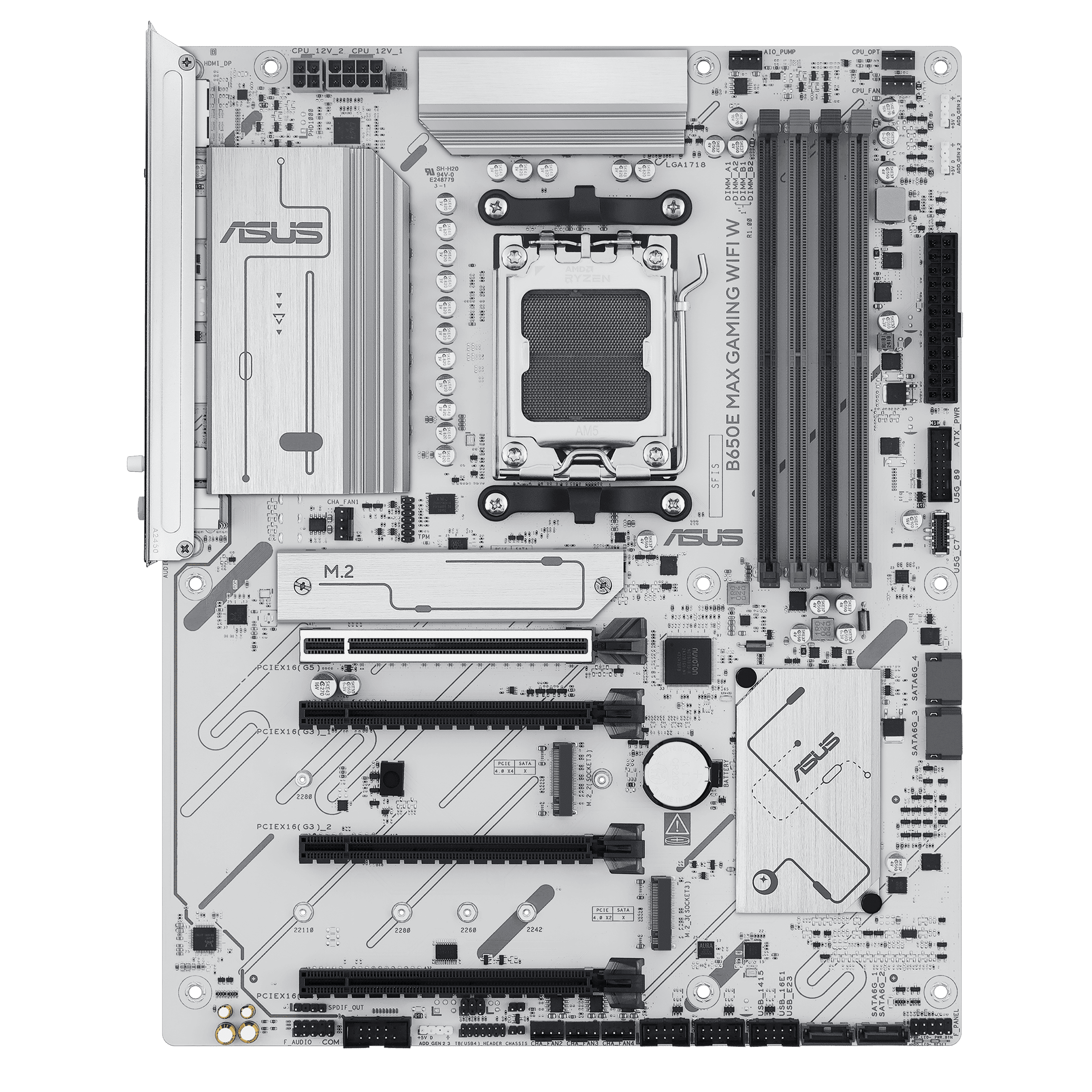

ASUS B650E MAX GAMING WIFI AM5 ATX Motherboard + 32GB DDR5-6000MHz TeamGroup RGB Memory [Bundle]

mobile gallery
    ASUS B650E MAX GAMING WIFI AM5 ATX Motherboard + 32GB DDR5-6000MHz TeamGroup RGB Memory [Bundle]

    Export Specification - Copy And Paste Into Your Post

    $249.99

    Loading...

    Specification

    Motherboard Brand

    ASUS

    CPU

    Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

    Chipset

    AMD B650

    CPU Socket

    Socket AM5

    Form Factor

    ATX

    Memory

    4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM [Non-ECC, un-buffered DDR5 memory supports On-Die ECC function], Dual channel memory architecture, Supports AMD Extended Profiles for OVerclocking (EXPO), ASUS Enhanced Memory Profile (AEMP)

    LAN

    1 x Realtek 2.5Gb Ethernet, ASUS LANGuard

    Wireless LAN

    Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11ax) [Supports 2.4/5/6GHz frequency band, Supports Bluetooth® v5.3

    Audio

    Realtek 7.1 Surround Sound High Definition Audio CODEC (Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192 kHz playback)

    Storage

    Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports/ AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M) type 2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M) type 2280 (supports PCIe 4.0 x4 mode) / AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M) type 2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M) type 2280 (supports PCIe 4.0 x4/x2 mode) / AMD B850 Chipset: M.2_3 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode), 4 x SATA 6Gb/s ports

    Onboard Graphics

    1 x DisplayPort, 1 x HDMI™ port

    Raid

    AMD RAIDXpert2 Technology: Ryzen™ 9000 Series Processors - RAID 0/1/5/10, Ryzen™ 8000 Series Processors - RAID 0/1, Ryzen™ 7000 Series Processors - RAID 0/1/10

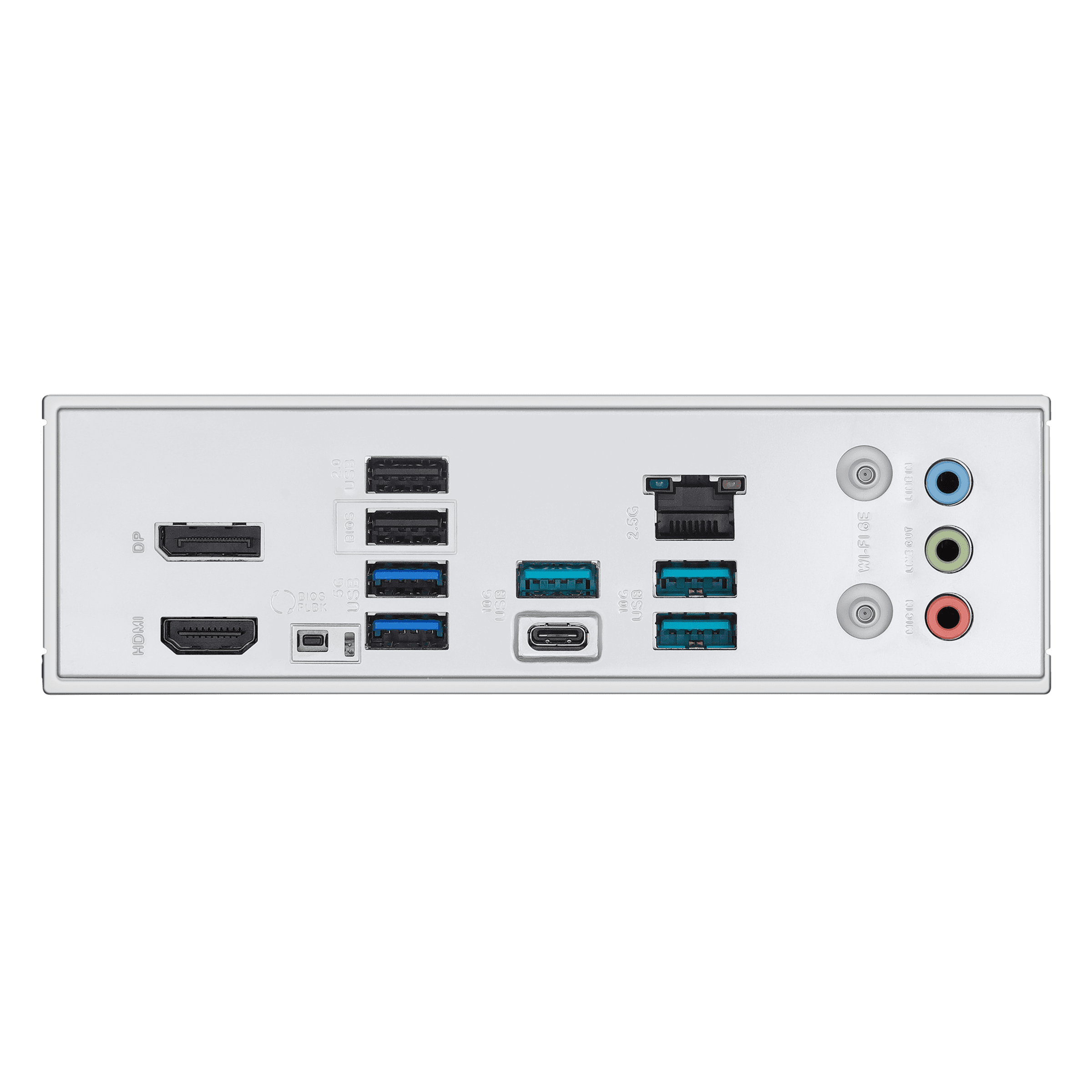

    I/O (Rear)

    1 x USB 10Gbps port (1 x USB Type-C®), 3 x USB 10Gbps ports (3 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button

    Expansion Slots

    AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode) / AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) / AMD B650 Chipset: 1 x PCIe 4.0 x16 slot (support x4 mode), 2 x PCIe 3.0 x16 slots (support x1 mode)

    USB (Front)

    1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 3 x USB 2.0 headers support 6 additional USB 2.0 ports

    USB (Rear)

    4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®), 2 x USB 5Gbps ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A)

    Internal Connectors

    1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connectors, 1 x 4-pin +12V CPU Power connectors, 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, 1 x USB 5Gbps connector (supports USB Type-C® ), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 3 x USB 2.0 headers support 6 additional USB 2.0 ports, 3 x Addressable RGB Gen 2 headers, 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin System Panel header, 1 x Thunderbolt™ (USB4®) header

    Dimensions

    9.60 in. x 12.00 in.

    Motherboard Warranty

    Refer to Manufacturer's Warranty

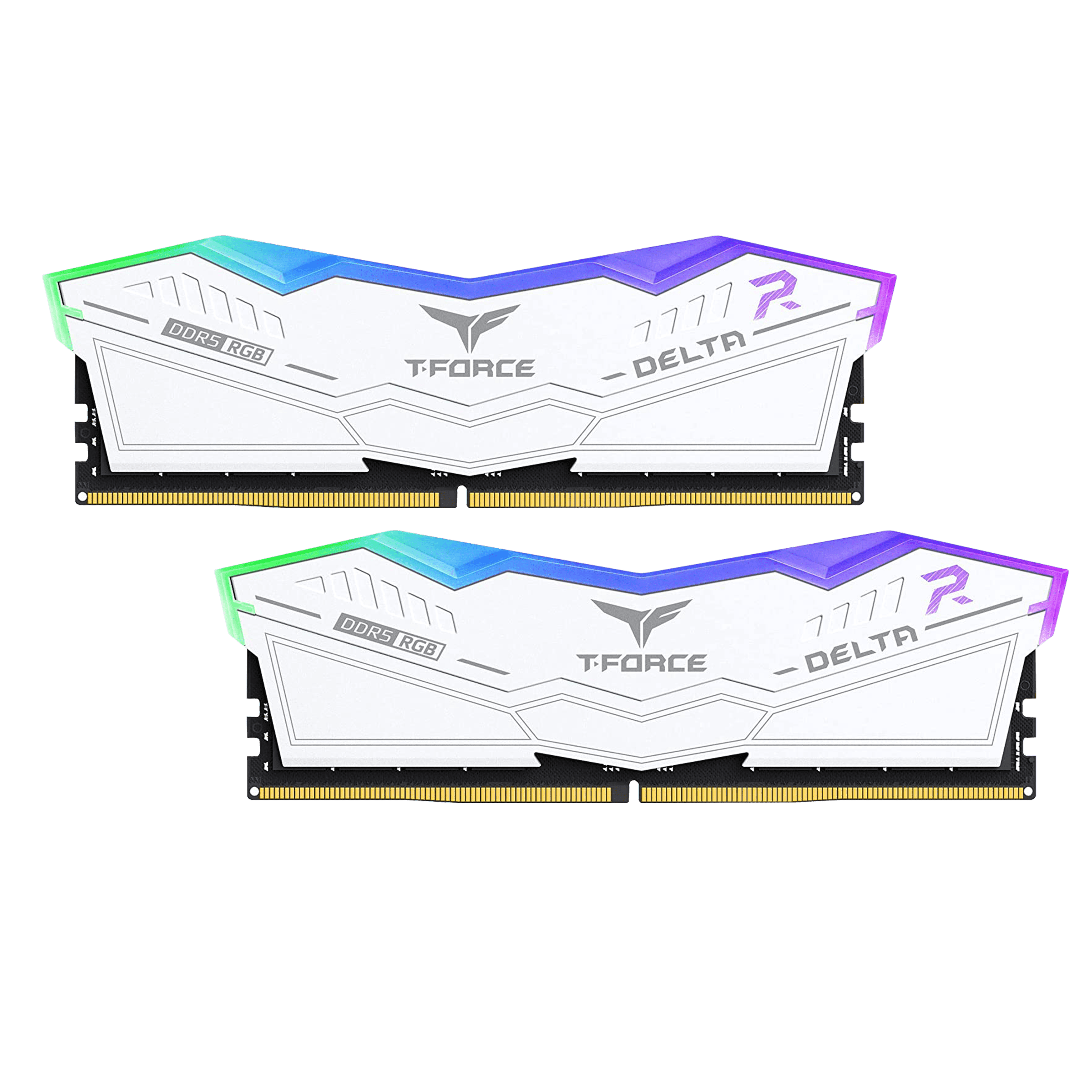

    Memory Brand

    TeamGroup

    Memory Packaging

    Tray

    Memory Capacity

    32 GB

    Memory Kit Configuration

    32GB x 2

    Tested Memory Speed (Up To)

    6000MHz

    CAS Latency

    CL38

    Memory Type

    DDR5

    Memory LED Lighting

    RGB

    Memory Color

    White

    Warranty

    Refer to Manufacturer's Warranty
    Loading...

    • Motherboard: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

    • Motherboard: Wi-Fi 6E, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A & Type-C® ports, and front USB 5Gbps Type-C® support

    • Motherboard: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+

    • Motherboard: Pre-mounted I/O shield, BIOS?FlashBack™, Q-Antenna, Q-LED Core

    • Motherboard: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting

    • Memory: RGB Colors & 120° Ultra-Wide Lighting

    • Memory: Combo Quick One-Click Overclocking Certification

    • Memory: Strengthened PMIC Cooling Design

    • Memory: Equipped with Smart RGB IC Controller that Supports Various Lighting Effect Software
